Feature — Performance Tracing

Introduction#

You can easily track the performance of any part of your application, such as API calls, DB queries, any function, or a user journey, using the performance tracing APIs. The SDK supports nested spans to track hierarchical operations.

[!NOTE]

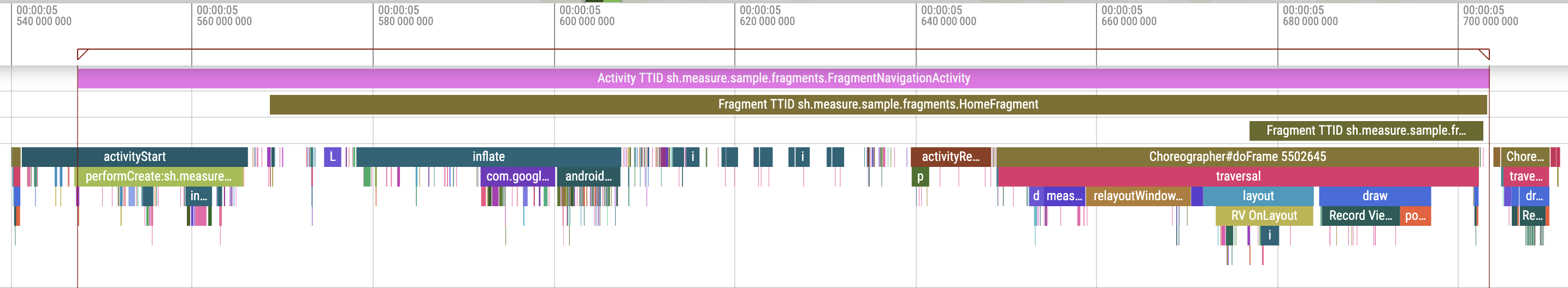

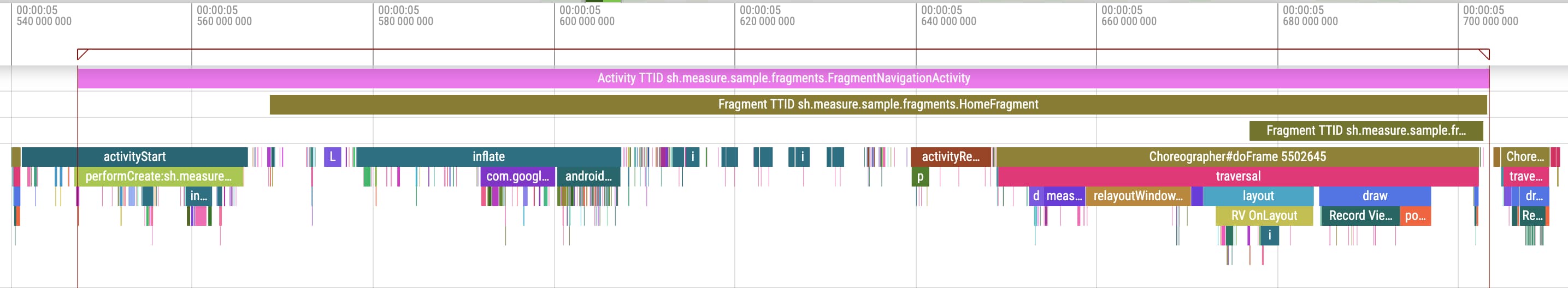

measure-sh can automatically track traces for screen load times in Android and iOS apps for Activities, Fragments, and UIViewControllers. See Screen Load Time for more details.

Here's a simple example of how to use the performance tracing APIs:

<details> <summary>Android</summary>
val onboardingSpan = Measure.startSpan("onboarding-flow")
try {
    val signupSpan = Measure.startSpan("signup", parent = onboardingSpan)
    userSignup()
    signupSpan.end()

    val tutorialSpan = Measure.startSpan("tutorial", parent = onboardingSpan)
    showTutorial()
    tutorialSpan.end(SpanStatus.Ok)
} finally {
    onboardingSpan.end(SpanStatus.Error)
}
</details> <details> <summary>iOS</summary>
let onboardingSpan: Span = Measure.startSpan(name: "onboarding-flow")
do {
    let signupSpan = Measure.startSpan("signup").setParent(parentSpan)
    userSignup()
    signupSpan.end()

    let tutorialSpan = Measure.startSpan("tutorial").setParent(parentSpan)
    showTutorial()
    tutorialSpan.end(status: .ok)
} catch {
    onboardingSpan.end(status: .error)
}
</details> <details> <summary>Flutter</summary>
final onboardingSpan = Measure.instance.startSpan("onboarding-flow");
try {
  final signupSpan = Measure.instance
      .startSpan("signup")
      .setParent(onboardingSpan);
  await userSignup();
  signupSpan.end();

  final tutorialSpan = Measure.instance
      .startSpan("tutorial")
      .setParent(onboardingSpan);
  await showTutorial();
  tutorialSpan.end(status: SpanStatus.ok);
} catch (e) {
  onboardingSpan.end(status: SpanStatus.error);
} finally {
  onboardingSpan.end();
}
</details>

This will result in a trace like the following:

onboarding-flow ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ [2.4s] ✓
┃
┣━ signup ━━━━━━━━━ [800ms] ✓
┃
┗━ tutorial ━━━━━━━━━━━━━━━━ [1.6s] ✓

Concepts#

Tracing helps you understand how long certain operations take to complete, from the moment they begin until they finish, including all the intermediate steps, dependencies, and parallel activities that occur during execution.

A trace represents the entire operation, which could be a complete user journey like onboarding, further divided into multiple steps like login, create profile, etc. A trace is represented by a trace_id.

A span is the fundamental building block of a trace. A span represents a single unit of work. This could be an HTTP request, a database query, a function call, etc. Each span contains information about the operation — when it started, how long it took, and whether it completed successfully or not. A span is identified using a span_id and a user-defined name.

Each span can optionally have a parent span, which allows you to create a hierarchy of spans. This is useful for tracking nested operations. For example, if a user journey involves multiple steps, each step can be represented as a child span of the main user journey span.

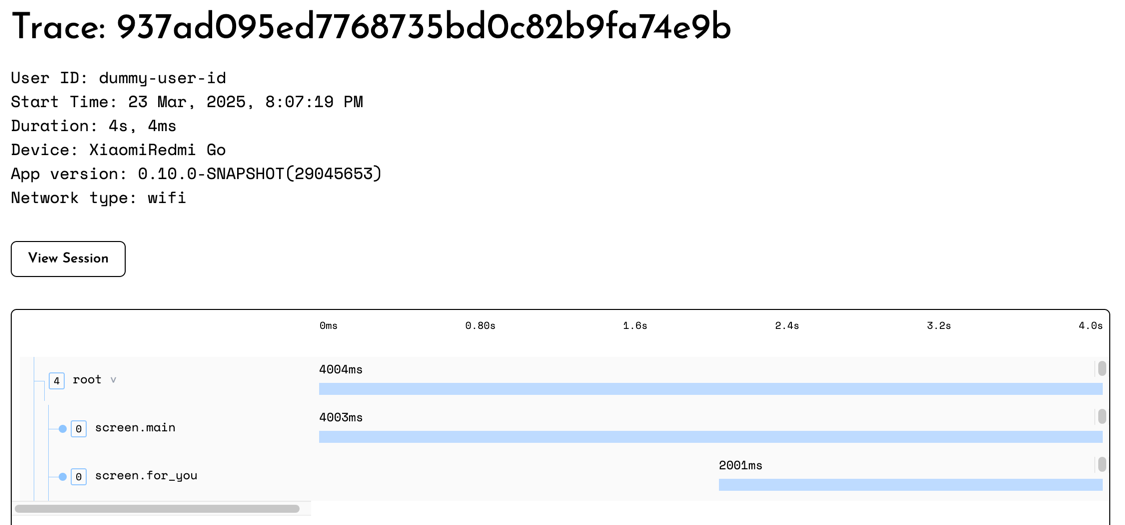

Trace view

API Reference#

Limits#

The following limits apply to spans. Spans violating the limits will either be discarded or have their data truncated.

Limit
Max Span Name Length64
Max Checkpoint Name Length64
Max Checkpoints Per Span100

Start a Span#

A span can be started using the startSpan function.

<details> <summary>Android</summary>
val span: Span = Measure.startSpan("span-name")
</details> <details> <summary>iOS</summary>
let span: Span = Measure.startSpan(name: "span-name")
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("span-name");
</details>

A span can also be started by providing the start time, this is useful in cases where a certain operation has already started but there wasn't any way to access the Measure APIs in that part of the code.

[!IMPORTANT] To set the start time, use Measure.getCurrentTime, which returns epoch time calculated using a monotonic clock. Passing in System.currentTimeInMillis can lead to issues with corrupted span timings due to clock skew issues.

<details> <summary>Android</summary>
val span: Span = Measure.startSpan("span-name", timestamp = Measure.getCurrentTime())
</details> <details> <summary>iOS</summary>
let span: Span = Measure.startSpan(name: "operation-name", timestamp: Measure.getCurrentTime())
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("span-name", timestamp: Measure.instance.getCurrentTime());
</details>

End a Span#

A span can be ended using the end function. Status is mandatory to set when ending a span.

<details> <summary>Android</summary>
val span: Span = Measure.startSpan("span-name")
span.setStatus(SpanStatus.Ok).end()
</details> <details> <summary>iOS</summary>
let span: Span = Measure.startSpan(name: "span-name")
span.setStatus(.ok).end()
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("span-name");
span.setStatus(SpanStatus.ok).end();
</details>

A span can also be ended by providing the end time, this is useful in cases where a certain operation has already ended but there wasn't any way to access the Measure APIs in that part of the code.

[!IMPORTANT] To set the end time, use Measure.getTimestamp, which returns epoch time calculated using a monotonic clock. Passing in System.currentTimeInMillis can lead to issues with corrupted span timings due to clock skew issues.

<details> <summary>Android</summary>
val span: Span = Measure.startSpan("span-name")
span.end(Status.Ok, timestamp = Measure.getTimestamp())
</details> <details> <summary>iOS</summary>
let span: Span = Measure.startSpan(name: "span-name")
span.setStatus(.ok).end(timestamp: Measure.getCurrentTime())
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("span-name");
span.setStatus(SpanStatus.ok).end(timestamp: Measure.instance.getCurrentTime());
</details>

Set Parent Span#

To set a parent span, use the setParent method.

<details> <summary>Android</summary>
val parentSpan: Span = Measure.startSpan("parent-span")
val childSpan: Span = Measure.startSpan("child-span").setParent(parentSpan)
</details> <details> <summary>iOS</summary>
let parentSpan: Span = Measure.startSpan(name: "parent-span")
let childSpan: Span = Measure.startSpan(name: "child-span").setParent(parentSpan)
</details> <details> <summary>Flutter</summary>
final parentSpan = Measure.instance.startSpan("parent-span");
final childSpan = Measure.instance.startSpan("child-span").setParent(parentSpan);
</details>

Set Attributes#

Attributes are key-value pairs that can be attached to a span. Attributes are used to add additional context to a span.

[!NOTE]

  • Attribute keys must be strings with a maximum length of 256 characters.
  • Attribute keys must only contain alphabets, numbers, hyphens and underscores.
  • Attribute values must be one of the primitive types: int, long, double, float, or boolean.
  • String attribute values can have a maximum length of 256 characters.

To add attributes to a span, use setAttribute.

<details> <summary>Android</summary>
val span: Span = Measure.startSpan("span-name")
span.setAttribute("key", "value")
</details> <details> <summary>iOS</summary>
let span: Span = Measure.startSpan(name: "span-name")
span.setAttribute("key", "value")
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("span-name");
span.setAttributeString("key", "value");
span.setAttributeInt("key", 10);
span.setAttributeDouble("key", 10.5);
span.setAttributeBool("key", true);
</details>

To add multiple attributes at once use setAttributes.

<details> <summary>Android</summary>
val span: Span = Measure.startSpan("span-name")
val attributes = AttributesBuilder().put("key", "value").put("key2", "value2").build()
span.setAttributes(attributes)
</details> <details> <summary>iOS</summary>
let span: Span = Measure.startSpan(name: "span-name")
let attributes: [String: AttributeValue] = ["key": "value", "key2": 42]
span.setAttributes(attributes)
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("span-name");
final attributes = AttributesBuilder().put("key", "value").put("key2", 42).build();
span.setAttributes(attributes);
</details>

Remove Attribute#

To remove an attribute use removeAttribute.

<details> <summary>Android</summary>
val span: Span = Measure.startSpan("span-name")
span.removeAttribute("key")
</details> <details> <summary>iOS</summary>
let span: Span = Measure.startSpan(name: "span-name")
span.removeAttribute("key")
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("span-name");
span.removeAttribute("key");
</details>

Update Span Name#

To update the name of the span after it is started, use setName.

<details> <summary>Android</summary>
val span: Span = Measure.startSpan("span-name")
span.setName("updated-name").end()
</details> <details> <summary>iOS</summary>
let span: Span = Measure.startSpan(name: "span-name")
span.setName("updated-name").end()
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("span-name");
span.setName("updated-name").end();
</details>

Add Checkpoint#

To add a checkpoint use setCheckpoint.

<details> <summary>Android</summary>
val span: Span = Measure.startSpan("span-name").setCheckpoint("checkpoint-name")
</details> <details> <summary>iOS</summary>
let span: Span = Measure.startSpan(name: "span-name").setCheckpoint("checkpoint-name")
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("span-name").setCheckpoint("checkpoint-name");
</details>

Deferred Span Start#

The span builder API allows pre-configuring a span without starting it immediately.

<details> <summary>Android</summary>
val spanBuilder: SpanBuilder = Measure.createSpan("span-name")
val span: Span = spanBuilder.startSpan()
</details> <details> <summary>iOS</summary>
let spanBuilder: SpanBuilder = Measure.createSpanBuilder(name: "span-name")!
let span: Span = spanBuilder.startSpan()
</details> <details> <summary>Flutter</summary>
final spanBuilder = Measure.instance.createSpanBuilder("span-name");
final span = spanBuilder.startSpan();
</details>

Distributed Tracing#

Distributed tracing is a monitoring method that helps tracking requests as they travel through different services in a distributed system (like microservices, serverless functions, and mobile apps).

The traceparent header is a key component of distributed tracing that helps track requests as they flow through different services. It follows the W3C Trace Context specification and consists of four parts in a single string:

Example: 00-4bf92f3577b34da6a3ce929d0e0e4736-00f067aa0ba902b7-01

Where:

  • 00: Version
  • 4bf92f3577b34da6a3ce929d0e0e4736: Globally unique trace ID
  • 00f067aa0ba902b7: Parent span ID (representing the current operation)
  • 01: Trace flags (like whether sampling is enabled)

When your mobile app makes API calls, including this header allows you to correlate the client-side operations with server-side processing, giving you end-to-end visibility of your request flow.

Get a trace parent header#

<details> <summary>Android</summary>
val span = Measure.startSpan("http")
val key = Measure.getTraceParentHeaderKey()
val value = Measure.getTraceParentHeaderValue(span)
</details> <details> <summary>iOS</summary>
let span = Measure.startSpan(name: "http")
let key = Measure.getTraceParentHeaderKey()
let value = Measure.getTraceParentHeaderValue(span: span)
</details> <details> <summary>Flutter</summary>
final span = Measure.instance.startSpan("http");
final key = Measure.instance.getTraceParentHeaderKey();
final value = Measure.instance.getTraceParentHeaderValue(span);
</details>

Sampling#

See Configuration Options for details on how to configure sampling for performance traces.

Recipes#

Distributed Tracing with OkHttp Interceptor#

// First, create an interceptor to handle tracing
class TracingInterceptor : Interceptor {
    override fun intercept(chain: Interceptor.Chain): Response {
        val span = Measure.startSpan("http")
        try {
            // Add traceparent header to the request
            val originalRequest = chain.request()
            val tracedRequest = originalRequest.newBuilder()
                .header(
                    Measure.getTraceParentHeaderKey(),
                    Measure.getTraceParentHeaderValue(span)
                )
                .build()

            // Execute the request
            val response = chain.proceed(tracedRequest)

            // Set span status based on response
            if (response.isSuccessful) {
                span.setStatus(SpanStatus.Ok)
            } else {
                span.setStatus(SpanStatus.Error)
            }
            return response
        } finally {
            span.end()
        }
    }
}

// Set up OkHttp client with the interceptor
val okHttpClient = OkHttpClient.Builder()
    .addInterceptor(TracingInterceptor())
    .build()

Distributed Tracing with URLSession Interceptor#

// Create a URLSession interceptor to handle tracing
class TracingInterceptor: NSObject, URLSessionTaskDelegate {
    func urlSession(_ session: URLSession, task: URLSessionTask, willPerformHTTPRedirection response: HTTPURLResponse, newRequest request: URLRequest, completionHandler: @escaping (URLRequest?) -> Void) {
        let span = Measure.startSpan(name: "http")
        var tracedRequest = request
        tracedRequest.addValue(
            Measure.getTraceParentHeaderValue(span: span),
            forHTTPHeaderField: Measure.getTraceParentHeaderKey()
        )
        completionHandler(tracedRequest)
        span.setStatus(.ok).end()
    }
}

// Set up URLSession with the interceptor
let session = URLSession(configuration: .default, delegate: TracingInterceptor(), delegateQueue: nil)

h3: ### Distributed Tracing with Dio Interceptor

class TraceHeaderInterceptor extends Interceptor {
  @override
  void onRequest(RequestOptions options, RequestInterceptorHandler handler) {
    // Start a new span for the HTTP request
    final span = Measure.instance.startSpan("http");

    // Get the trace parent header key and value
    final key = Measure.instance.getTraceParentHeaderKey();
    final value = Measure.instance.getTraceParentHeaderValue(span);

    // Add the trace header to the request
    options.headers[key] = value;

    // Store the span in extra data so we can finish it later
    options.extra['trace_span'] = span;
    super.onRequest(options, handler);
  }

  @override
  void onResponse(Response response, ResponseInterceptorHandler handler) {
    final span = response.requestOptions.extra['trace_span'];
    span?.end();
    super.onResponse(response, handler);
  }

  @override
  void onError(DioException err, ErrorInterceptorHandler handler) {
    final span = err.requestOptions.extra['trace_span'];
    span?.end();
    super.onError(err, handler);
  }
}

Screen Load Time#

Time taken to load an Activity/Fragment in Android or a UIViewController in iOS is automatically tracked using a trace.

Android#

Activity load time measures the time between the Activity being created and the first frame drawn on the screen. This is also known as Time to First Frame or Time to Initial Display (TTID).

Each Activity load time is captured using a unique span with the name Activity TTID followed by the fully qualified class name of the Activity. For example, for MainActivity the span name would be Activity TTID com.example.MainActivity.

An attribute called app_startup_first_activity with value of true is automatically added to the span to indicate if the Activity was being loaded as part of a cold launch.

Fragment load time measures the time between the Fragment view being created and the first frame drawn on the screen. This is also known as Time to First Frame (TTF) or Time to Initial Display (TTID).

Each Fragment load time is captured using a unique span with the name Fragment TTID followed by the fully qualified class name of the Fragment. For example, for HomeFragment the span name would be Fragment TTID com.example.HomeFragment.

A large TTID means users wait too long to see content while navigating the app.

Note that the fully qualified activity name may be truncated to fit within the 64 character limits for span names.

How it works

Activity load time a span starts in the onCreate callback of the Activity. The span ends when the first frame is drawn on the screen. This is achieved using two techniques:

  1. Attach a View.addOnAttachStateChangeListener to the root view of the Activity to detect when the view is attached to the window.
  2. Post a runnable using Handler.sendMessageAtFrontOfQueue on the main thread as a proxy for detecting when the first frame is drawn.

Data Captured

A span with the name Activity TTID {fully qualified activity name} is created for each Activity load. And a span with the name Fragment TTID {fully qualified fragment name} is created for each Fragment load.

The Activity TTID span may have the following attributes if applicable:

AttributeDescription
app_startup_first_activityWhether this activity is the first activity launched in the app.

The spans have the following checkpoints:

CheckpointDescription
fragment_lifecycle_attachedThe time when the Fragment was attached.
fragment_lifecycle_startedThe time when the Fragment was started.
fragment_lifecycle_resumedThe time when the Fragment was resumed.
activity_lifecycle_createdThe time when the Activity was created.
activity_lifecycle_startedThe time when the Activity was started.
activity_lifecycle_resumedThe time when the Activity was resumed.

Spans Visualized Using Perfetto

The following image shows TTID spans of an Activity along with its two Fragments visualized using Perfetto.


iOS#

ViewController load time measures the time between the ViewController's view being loaded and the first frame drawn on the screen. This is also known as Time to First Frame or Time to Initial Display (TTID).

Each ViewController load time is captured using a unique span with the name VC TTID followed by the fully qualified class name of the ViewController. For example, for MainViewController the span name would be VC TTID MainViewController.

An attribute called app_startup_first_view_controller with a value of true is automatically added to the span to indicate if the ViewController was being loaded as part of a cold launch.

A large TTID means users wait too long to see content while navigating the app.

Note that the fully qualified ViewController name may be truncated to fit within the 64 character limits for span names.

How It Works

ViewController load time tracking works by monitoring the ViewController's lifecycle events:

  1. The span starts in either the loadView or viewDidLoad callback of the ViewController:
    • If you inherit from MsrViewController (Swift) or MSRViewController (Objective-C), the span will start from loadView.
    • Otherwise, the span will start from viewDidLoad.
  2. The span ends when viewDidAppear is called, indicating that the view is fully visible on screen.

The SDK uses method swizzling to automatically track these lifecycle events without requiring any manual instrumentation.

Data Captured

A span with the name VC TTID {view controller name} is created for each ViewController load.

The ViewController TTID span may have the following attributes if applicable:

AttributeDescription
app_startup_first_view_controllerWhether this view controller is the first one launched in the app.

The spans have the following checkpoints:

CheckpointDescription
vc_load_viewThe time when the view was loaded.
vc_view_did_loadThe time when the view was loaded into memory.
vc_view_will_appearThe time when the view is about to appear.
vc_view_did_appearThe time when the view is fully visible.
Gesture TrackingTrack Custom Events
