ANR Reporting

ANRs (Application Not Responding errors) are automatically tracked. Optionally, the SDK can also capture a snapshot of your app’s UI at the moment the crash occurred.

Debugging ANRs#

You can easily debug ANRs by following the in-depth guide in the Android documentation. It covers different scenarios that lead to ANRs and how to approach fixing them.

You can also use the session timelines in Measure to see what was happening in the app before the ANR occurred. The timeline shows all app activity, including CPU and Memory usage, giving you crucial context for understanding the ANR and pinpointing the cause.

Additionally, starting from Android API level 30, the Application Exit feature provides valuable insights. Measure tracks all app exit events and reports them to the server along with the stack trace. Here’s an example snippet from a trace:

"main" prio=5 tid=1 Blocked
  at sh.measure.sample.ExceptionDemoActivity.deadLock$lambda$10(ExceptionDemoActivity.kt:66)
  - waiting to lock <0x0a293e9f> (a java.lang.Object) held by thread 22
  at sh.measure.sample.ExceptionDemoActivity.$r8$lambda$kc26SdTV_Hqz6i5PLOpVXKS016U(unavailable:0)
  at sh.measure.sample.ExceptionDemoActivity$$ExternalSyntheticLambda9.run(unavailable:2)
  at android.os.Handler.handleCallback(Handler.java:942)
  at android.os.Handler.dispatchMessage(Handler.java:99)
  at android.os.Looper.loopOnce(Looper.java:201)
  at android.os.Looper.loop(Looper.java:288)
  at android.app.ActivityThread.main(ActivityThread.java:7872)
  at java.lang.reflect.Method.invoke(Native method)
  at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:548)
  at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:936)


"APP: Locker" prio=5 tid=22 Sleeping
  at java.lang.Thread.sleep(Native method)
  - sleeping on <0x06290e31> (a java.lang.Object)
  at java.lang.Thread.sleep(Thread.java:450)
  - locked <0x06290e31> (a java.lang.Object)
  at java.lang.Thread.sleep(Thread.java:355)
  at sh.measure.sample.ExceptionDemoActivity.sleep(ExceptionDemoActivity.kt:86)
  at sh.measure.sample.ExceptionDemoActivity.access$sleep(ExceptionDemoActivity.kt:12)
  at sh.measure.sample.ExceptionDemoActivity$LockerThread.run(ExceptionDemoActivity.kt:80)
  - locked <0x0a293e9f> (a java.lang.Object)

In this example, the “main” thread is blocked, waiting to lock an object held by thread 22, which is sleeping and holding that lock. This creates a deadlock, leading to an ANR.

[!NOTE]
Starting from API 31, for native crashes, App Exit Info contains the tombstone stack trace. Support for native crash reports is not yet implemented and will be coming soon. Track the updates in this issue.

Metrics#

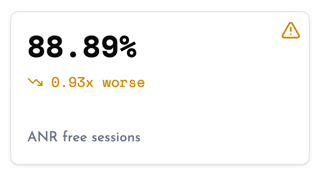

ANR-Free Rate

The ANR-Free Rate measures the percentage of sessions that didn’t experience any ANRs. Here’s how it’s calculated:

ANR-Free Rate = (Total Sessions - ANR Sessions) / Total Sessions * 100

Where:

  • Total Sessions: The total number of sessions recorded.
  • ANR Sessions: The number of sessions that experienced an ANR.

Get a UI Snapshot#

A screenshot of the app is captured when an app crashes. This feature is enabled by default and can be remotely configured on the dashboard under the "Apps" section. The following configuration options are available:

  • Capture Screenshot on ANR — Enables or disables the automatic screenshot capture on crash. It is enabled by default.
  • Mask Sensitive Information — Masks sensitive information in the screenshot by blurring text fields and password fields. It is disabled by default.

Data Collected#

Check out all the data collected for App Exit in the App Exit Event section.

How It Works#

Measure SDK detects ANRs by tracking the SIGQUIT signal. When an ANR occurs, this signal is sent to the app process. The SDK picks up on this signal and reports the ANR to the server.

Implementation Details

Apart from setting a signal disposition using sigaction, a thread can also set up a sigwait. This allows the registered signals to be handled on this thread without triggering the sigaction handler.

Handling Signals#

Signals can be handled using sigaction or sigwait (among others which we'll not cover in this article).

sigaction(2)#

The sigaction system call is used to change the action taken by a process on receipt of a specific signal. The handler function provided affects how the process handles the signal (i.e., signal handler is not per thread).

Signal handlers are per-process, but signal masks are per-thread.

sigwait(3)#

The sigwait function suspends execution of the calling thread until one of the signals specified in the signal set becomes pending. Once a signal is processed by this thread, it is automatically cleared from the set of pending signals. It then returns that signal number. No signal handlers set using sigaction are triggered for this signal once cleared by sigwait.

sigwait makes it easy to handle the signals synchronously in normal program execution.

Semaphores#

The implementation relies on Semaphores to synchronize the threads.

sem_wait(3)#

sem_wait decrements (locks) the semaphore. If the semaphore's value is greater than zero, then the decrement proceeds, and the function returns immediately. If the semaphore currently has the value zero, then the call blocks until it becomes possible to perform the decrement (i.e., the semaphore value rises above zero).

sem_post(3)#

sem_post increments (unlocks) the semaphore. If the semaphore's value consequently becomes greater than zero, then the thread blocked in a sem_wait call will be woken up and proceed to lock the semaphore.

Detecting SIGQUIT on Android#

Setting a signal handler using sigaction is the typical way to detect and track a SIGQUIT on a Linux system. However, Android registers sigwait for the SIGQUIT signal for every app (reference). Hence, simply registering a sigaction will not have any effect as noted earlier.

  1. Find the thread ID of the thread called "Signal Catcher". This is the thread using which Android registers the sigwait. Thread ID is found by looping over the directory /proc/<pid>/task/ and reading the thread name from the contents of the comm file in each subdirectory to find the thread name. More on this can be found here.
  2. Create a new thread called "Watchdog" using pthread_create and set the signal mask to unblock the SIGQUIT signal using pthread_sigmask for this thread. This ensures that the new thread can receive the SIGQUIT signal instead of the Signal Catcher thread.
  3. Register a semaphore using sem_wait in the Watchdog thread which blocks it until the SIGQUIT signal is received.
  4. Register a signal handler using sigaction for the SIGQUIT signal. When SIGQUIT is received, the handler invokes sem_post to unblock the Watchdog thread.
  5. When the Watchdog thread's semaphore is unlocked, it notifies Measure SDK of an ANR by a callback using JNI.
  6. Eventually, the Watchdog thread notifies the "Signal Catcher" thread to handle the signal as usual by using syscall:
    syscall(SYS_tgkill, pid, signal_catcher_tid, SIGQUIT);
