Getting Started

• 1. Create an App
• 2. Set Up the SDK
  • Android
  • iOS
  • Flutter
• 3. Verify Installation
• 4. Review Configuration Options
• Troubleshoot

1. Create an App#

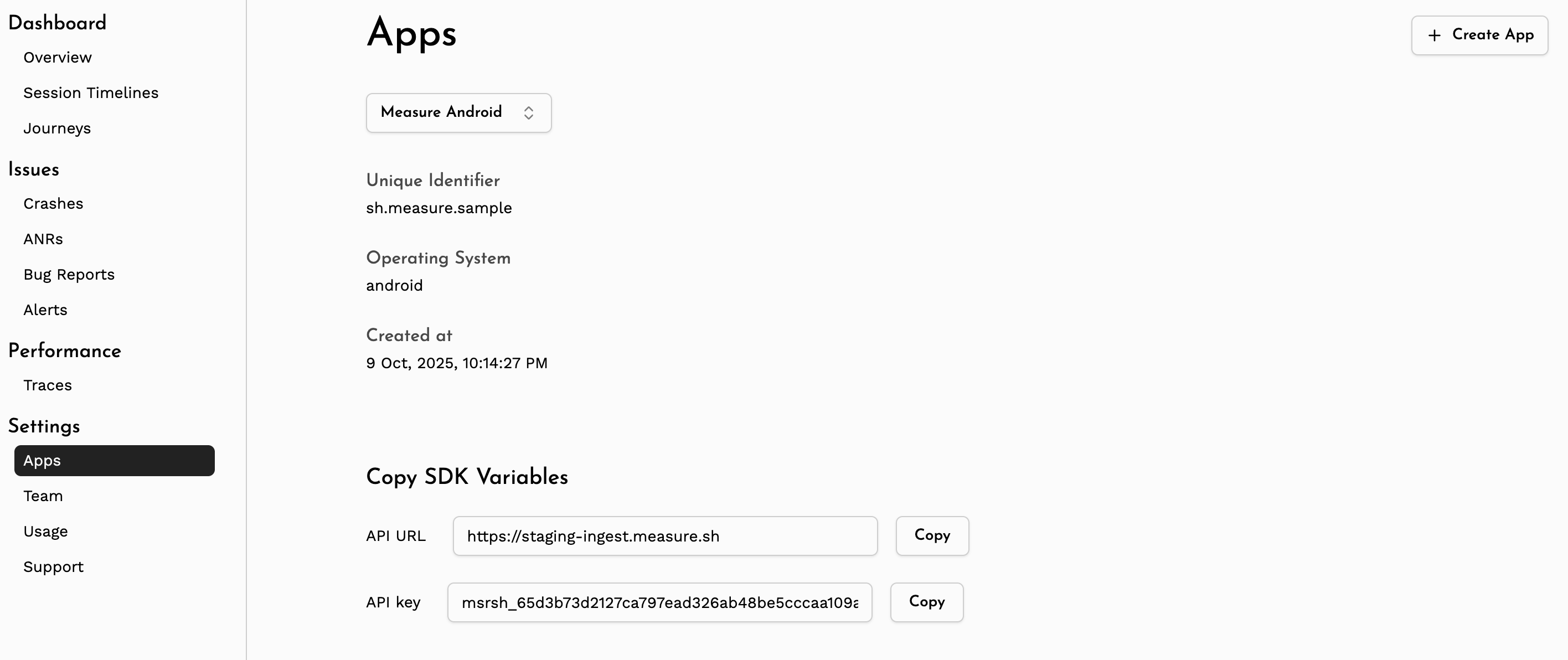

Create a new app by visiting the Apps section on the dashboard.

Once the app is created, note the API URL & API Key for your app. This will be used in the SDK configuration in later steps.

2. Set Up the SDK#

• Android
• iOS
• Flutter

Android#

<details> <summary>Minimum Requirements</summary> </details> <details> <summary>Self-host Compatibility</summary> </details>

Add the API Key & API URL#

Add the API URL & API Key to your application's AndroidManifest.xml file.

<application>
    <meta-data android:name="sh.measure.android.API_KEY" android:value="YOUR_API_KEY"/>
    <meta-data android:name="sh.measure.android.API_URL" android:value="YOUR_API_URL"/>
</application>

<details> <summary>Configure API Keys for Different Build Types</summary>

You can use manifestPlaceholders to configure different values for different build types or flavors.

In the build.gradle.kts file:

android {
    buildTypes {
        debug {
            manifestPlaceholders["measureApiKey"] = "YOUR_API_KEY"
            manifestPlaceholders["measureApiUrl"] = "YOUR_API_URL"
        }
        release {
            manifestPlaceholders["measureApiKey"] = "YOUR_API_KEY"
            manifestPlaceholders["measureApiUrl"] = "YOUR_API_URL"
        }
    }
}

or in the build.gradle file:

android {
    buildTypes {
        debug {
            manifestPlaceholders = ["measureApiKey": "YOUR_API_KEY"]
            manifestPlaceholders = ["measureApiUrl": "YOUR_API_URL"]
        }
        release {
            manifestPlaceholders = ["measureApiKey": "YOUR_API_KEY"]
            manifestPlaceholders = ["measureApiUrl": "YOUR_API_URL"]
        }
    }
}

Then add the following in the AndroidManifest.xml file:

<application>
    <meta-data android:name="sh.measure.android.API_KEY" android:value="${measureApiKey}"/>
    <meta-data android:name="sh.measure.android.API_URL" android:value="${measureApiUrl}"/>
</application>

</details>

Add the Gradle Plugin#

Add the following plugin to your project.

plugins {
    id("sh.measure.android.gradle") version "0.11.0"
}

or, use the following if you're using build.gradle.

plugins {
    id 'sh.measure.android.gradle' version '0.11.0'
}

<details> <summary>Configure Variants</summary>

By default, the plugin is applied to all variants. To disable the plugin for specific variants, use the measure block in your build file.

[!IMPORTANT] Setting enabled to false will disable the plugin for that variant. This prevents the plugin from collecting mapping.txt file and other build information about the app. Features like tracking app size, de-obfuscating stack traces, etc. will not work.

For example, to disable the plugin for debug variants, add the following to your build.gradle.kts file:

measure {
    variantFilter {
        if (name.contains("debug")) {
            enabled = false
        }
    }
}

or in the build.gradle file:

measure {
    variantFilter {
        if (name.contains("debug")) {
            enabled = false
        }
    }
}

</details>

Add the SDK#

Add the following to your app's build.gradle.kts file.

implementation("sh.measure:measure-android:0.16.1")

or, add the following to your app's build.gradle file.

implementation 'sh.measure:measure-android:0.16.1'

Initialize the SDK#

Add the following to your app's Application class onCreate method.

[!IMPORTANT] To be able to detect early crashes and accurate launch time metrics, initialize the SDK as soon as possible in Application onCreate method.

Measure.init(
    context, MeasureConfig(
        // Enable full collection in debug mode
        // to verify installation
        enableFullCollectionMode = true,
    )
)

See the troubleshooting section if you face any issues.

iOS#

<details> <summary>Minimum Requirements</summary> </details> <details> <summary>Self-host Compatibility</summary> </details>

Install the SDK#

Measure SDK supports CocoaPods and Swift Package Manager (SPM) for installation.

Using CocoaPods

CocoaPods is a dependency manager for Cocoa projects. For usage and installation instructions, visit their website. To integrate MeasureSDK into your Xcode project using CocoaPods, specify it in your Podfile:

pod 'measure-sh'

Using Swift Package Manager

The Swift Package Manager is a tool for automating the distribution of Swift code and is integrated into the swift compiler.

Add Measure as a dependency by adding dependencies value to your Package.swift or the Package list in Xcode.

dependencies: [
    .package(url: "https://github.com/measure-sh/measure.git", branch: "ios-v0.9.2")
]

Initialize the SDK#

Add the following to your AppDelegate's application(_:didFinishLaunchingWithOptions:) to capture early crashes and launch time metrics.

[!IMPORTANT] To detect early crashes and ensure accurate launch time metrics, initialize the SDK as soon as possible in application(_:didFinishLaunchingWithOptions:).

import Measure

func application(_ application: UIApplication,
                 didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
    let config = BaseMeasureConfig(
        // Set to true to track all sessions
        // useful to verify the installation
        enableFullCollectionMode: true
    )
    let clientInfo = ClientInfo(apiKey: "<apiKey>", apiUrl: "<apiUrl>")
    Measure.initialize(with: clientInfo, config: config)
    return true
}

#import <Measure/Measure.h>

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
    ClientInfo *clientInfo = [[ClientInfo alloc] initWithApiKey:@"<apiKey>" apiUrl:@"<apiUrl>"];
    BaseMeasureConfig *config = [[BaseMeasureConfig alloc] initWithEnableLogging:YES
                                                           autoStart:true
                                                           requestHeadersProvider:nil];
    [Measure initializeWith:clientInfo config:config];
    return YES;
  }

Flutter#

The Flutter SDK currently supports only Android and iOS targets and is not available for web or desktop. The SDK depends on the native Android and iOS SDKs, so all the minimum requirements for Android and iOS apply to the Flutter SDK as well.

<details> <summary>Minimum Requirements</summary> </details> <details> <summary>Self-host Compatibility</summary> </details>

Install the SDK#

Add the following dependency to your pubspec.yaml file:

dependencies:
  measure_flutter: ^0.3.2

Initialize the SDK#

To initialize the SDK, you need to call the Measure.instance.init method in your main function.

• Run app inside the callback passed to the init method. This ensures that the Measure SDK can set up error handlers to track uncaught exceptions.
• Wrap your app with the MeasureWidget, this is required for gesture tracking and screenshots.

[!IMPORTANT] To detect early native crashes and to ensure accurate launch time metrics, initialize the Android SDK in Application class as described in the Android section and the iOS SDK in AppDelegate as described in the iOS section. It is highly recommended to initialize both native SDKs even when using the Flutter SDK.

Future<void> main() async {
  await Measure.instance.init(
            () =>
            runApp(
              // wrap your app with MeasureWidget
              MeasureWidget(child: MyApp()),
            ),
    // SDK configuration
    config: const MeasureConfig(
      enableLogging: true,
    ),
  );
}

This does the following:

• Initializes the Measure SDK with the provided config.
• Wraps your app with the MeasureWidget for gesture detection and layout snapshots.
• Sets up the error handlers to track uncaught exceptions.

Flutter Android Setup#

Measure Flutter SDK depends on the native Android SDK, so you need to follow all the steps mentioned in the Android section to set up the Android SDK properly.

1. Add API Key & API URL to Android Manifest
2. Add Android Gradle Plugin
3. Initialize the SDK

Flutter iOS Setup#

Measure Flutter SDK depends on the native iOS SDK, so you need to follow all the steps mentioned in the iOS section to set up the iOS SDK properly.

1. Install the SDK using CocoaPods or SPM
2. Initialize the SDK

Track navigation#

See Navigation Monitoring for instructions on how to track navigation events.

Track http requests#

See Network Monitoring for instructions on how to track HTTP requests.

Gesture tracking & Layout Snapshots#

The Flutter SDK automatically captures gestures like clicks, long clicks and scrolls. It also captures layout snapshots on every click to help visualize user interactions. To enable these features, simply wrap your app with the MeasureWidget as shown in the initialization step above.

Read more about adding custom widget names in the layout snapshots in Gesture Tracking & Layout Snapshots.

3. Verify Installation#

Launch the app with the SDK integrated and navigate through a few screens. The data is sent to the server periodically, so it may take a few seconds to appear. Checkout the Usage section in the dashboard or navigate to the Session Timelines tab to see the data.

🎉 Congratulations! You have successfully integrated Measure into your app!

---

4. Review Configuration Options#

There are several configuration options available to customize the SDK behavior. Some options can be set during SDK initialization, while others can be configured remotely from the dashboard. Review the Configuration Options section to learn more about these options and how to use them effectively.

For debug builds, it's recommended to set enableFullCollectionMode to true during initialization to ensure all data is collected for verification purposes. In release builds, you can adjust the sampling rates and other settings as needed to balance signal vs noise and optimize costs.

Troubleshoot#

Enable full collection mode for debug builds#

Set enableFullCollectionMode to true, which would enforce all data to be sent to the server. Do note that for production this can lead to high costs, so it should only be used for debugging purposes.

<details> <summary>Android</summary>

val config = MeasureConfig(
  enableFullCollectionMode = true,
)
Measure.init(context, config)

</details> <details> <summary>iOS</summary>

let config = BaseMeasureConfig(
    enableFullCollectionMode: 1
)
Measure.initialize(with: clientInfo, config: config)

</details> <details> <summary>Flutter</summary>

Flutter SDK depends on the native SDKs, so you need to set enableFullCollectionMode to true in both Android and iOS native SDK initializations.

</details>

Verify API URL and API Key#

If you are not seeing any data in the dashboard, verify that the API URL and API key are set correctly in your app.

<details> <summary>Android</summary>

If logs show any of the following errors, make sure you have added the API URL and API key in your AndroidManifest.xml file.

sh.measure.android.API_URL is missing in the manifest
sh.measure.android.API_KEY is missing in the manifest

</details> <details> <summary>iOS</summary>

Verify the API URL and API key are set correctly in the ClientInfo object when initializing the SDK.

let config = BaseMeasureConfig()
let clientInfo = ClientInfo(apiKey: "<apiKey>", apiUrl: "<apiUrl>")
Measure.initialize(with: clientInfo, config: config)

</details> <details> <summary>Flutter</summary>

Flutter SDK depends on the native SDKs, so verify that the API URL and API key are set correctly in both Android and iOS native SDK initializations.

</details>

Connecting to Locally-hosted Server (for self-host customers)#

iOS

If you are running the measure-sh server on your machine, setting the API_URL to localhost:8080 will work on the simulator because it can access localhost. However, a physical device cannot access your computer's localhost.

To resolve this, you can use ngrok or a similar service to provide a public URL to your local server. This allows your physical device to connect to the server.

Android

For Android, if your device is on the same network as your computer, you can use your computer's local IP address (e.g., 192.168.1.X:8080) as the API_URL. Alternatively, you can set up ADB port forwarding with the command adb reverse tcp: 8080 tcp:8080 to allow the device to connect to the server.

When using an Android emulator, you can set the API_URL to http://10.0.2.2:8080 to access the server running on your machine.

Alternatively, you can use ngrok or a similar service to provide a public URL to your local server. This allows your Android emulator or physical device to connect to the server.

Enable Logs#

<details> <summary>Android</summary>

Enable logging during SDK initialization. All Measure SDK logs use the tag Measure.

val config = MeasureConfig(enableLogging = true)
Measure.init(context, config)

</details> <details> <summary>iOS</summary>

Enable logging during SDK initialization.

let config = BaseMeasureConfig(enableLogging: true)
Measure.initialize(with: clientInfo, config: config)

</details> <details> <summary>Flutter</summary>

Enable logging during SDK initialization.

await Measure.instance.init(() => runApp(MeasureWidget(child: MyApp())),
config: const MeasureConfig(enableLogging:true));

</details>

Connecting to a Self-hosted Server#

If you are hosting the server in cloud. Make sure the API URL is set to the public URL of your server. For example: set the API URL to https://measure-api.<your-domain>.com, replacing <your-domain> with your own domain.

Contact Support#

If none of the above steps resolve the issue, feel free to reach out to us on Discord for further assistance.
