Configuration Options

Measure provides a number of configuration options to customize data collection and SDK behavior. These options are available in two ways:

• SDK Options — Set at initialization time in your app's code.
• Remote Configuration Options — Configured remotely from the Measure dashboard. Changes take effect without releasing a new app version.

Table of Contents

• SDK Configuration Options
  • API Reference
    • Android
    • iOS
    • Flutter
  • trackActivityIntentData
  • enableLogging
  • autoStart
  • requestHeadersProvider
  • maxDiskUsageInMb
  • enableFullCollectionMode
• Remote Configuration Options
  • Crash Reporting
  • ANR Reporting
  • Trace Sampling
  • Launch Metrics Sampling
  • Journey Sampling
  • HTTP Events
  • Screenshot Mask Level

SDK Configuration Options

API Reference#

Android

For Android, options can be set in the MeasureConfig object which is passed to the Measure.init method. Example:

Measure.init(
    context, MeasureConfig(
        enableLogging = true,
        autoStart = true,
        maxDiskUsageInMb = 50,
        trackActivityIntentData = true,
        requestHeadersProvider = customRequestHeadersProvider,
        enableFullCollectionMode = false,
    )
)

iOS

For iOS, options can be set in the BaseMeasureConfig object which is passed to the Measure.initialize method. Example:

let config = BaseMeasureConfig(enableLogging: true,
                               autoStart: true,
                               maxDiskUsageInMb: 50,
                               requestHeadersProvider: customRequestHeadersProvider,
                               enableFullCollectionMode: false)
Measure.initialize(with: clientInfo, config: config)

Flutter

For Flutter, options can be set in the MeasureConfig object which is passed to the Measure.init method. Example:

Future<void> main() async {
  await Measure.instance.init(
        () => runApp(MeasureWidget(child: MyApp())),
    config: const MeasureConfig(
      enableLogging: true,
      autoStart: true,
      maxDiskUsageInMb: 50,
      enableFullCollectionMode: false,
    ),
  );
}

trackActivityIntentData#

Applies only to Android.

Android Intent can contain a bundle with any arbitrary information. While this can be useful to debug certain issues which require checking what data was passed as part of the bundle, it might also contain sensitive information.

trackActivityIntentData allows enabling/disabling of collection of intent data for the following events:

• lifecycle_activity.created event, which is collected with the Activity lifecycle event onCreate is triggered.
• cold_launch event, which is collected when the app is launched from a cold start.
• warm_launch event, which is collected when the app is launched from a warm start.
• hot_launch event, which is collected when the app is launched from a hot start.

Defaults to false.

enableLogging#

Allows enabling/disabling internal logging of Measure SDK. This is useful to debug issues with the SDK itself.

Defaults to false.

autoStart#

Controls whether to start tracking immediately or delay starting the SDK.

Defaults to true.

Use Measure.start to start the SDK at a different point and Measure.stop to stop the SDK from tracking data.

requestHeadersProvider#

Allows configuring custom HTTP headers for requests made by the Measure SDK to the Measure API. This is useful only for self-hosted clients who may require additional headers for requests in their infrastructure.

Defaults to null, which means no additional headers are added.

The following headers are reserved by the SDK and will be ignored if provided:

• Content-Type
• msr-req-id
• Authorization
• Content-Length

Android Usage

class CustomHeaderProvider : MsrRequestHeadersProvider {
    private val requestHeaders: ConcurrentMap<String, String> = ConcurrentHashMap()

    fun addHeader(key: String, value: String) {
        requestHeaders[key] = value
    }

    fun removeHeader(key: String) {
        requestHeaders.remove(key)
    }

    override fun getRequestHeaders(): Map<String, String> {
        return requestHeaders.toMap() // Return immutable copy
    }
}

Measure.init(
    context, MeasureConfig(
        requestHeadersProvider = CustomHeadersProvider()
    )
)

iOS Usage

Using Swift:

class CustomHeaderProvider: NSObject, MsrRequestHeadersProvider {
    func getRequestHeaders() -> NSDictionary {
        return ["X-App-Version": "1.0.0"]
    }
}

Measure.initialize(with: clientInfo, config: BaseMeasureConfig(requestHeadersProvider: CustomHeadersProvider()))

<details> <summary>Using ObjC</summary>

@interface RequestHeaderProvider : NSObject <MsrRequestHeadersProvider>

@end

@implementation RequestHeaderProvider

- (NSDictionary *)getRequestHeaders {
    return @{ @"X-Custom-Header": @"value" };
}

@end

// add below snippet while initializing the SDK.
ClientInfo *clientInfo = [[ClientInfo alloc] initWithApiKey:@"api-key" apiUrl:@"api-url"];
    BaseMeasureConfig *config = [[BaseMeasureConfig alloc] initWithEnableLogging:YES
                                                samplingRateForErrorFreeSessions:1.0
                                                               traceSamplingRate:1.0
                                                                trackHttpHeaders:YES
                                                                   trackHttpBody:NO
                                                            httpHeadersBlocklist:@[@"Authorization", @"Cookie"]
                                                                httpUrlBlocklist:@[@"https://sensitive.example.com"]
                                                                httpUrlAllowlist:@[@"https://api.example.com"]
                                                                       autoStart:YES
                                                     trackViewControllerLoadTime:YES
                                                             screenshotMaskLevel:ScreenshotMaskLevelObjcAllText
                                                          requestHeadersProvider:[RequestHeaderProvider new]];
    [Measure initializeWith:clientInfo config:config]

</details>

maxDiskUsageInMb#

Allows setting the maximum disk usage for Measure SDK. This is useful to control the amount of disk space used by the SDK for storing session data, crash reports, and other collected information.

All Measure SDKs store data to disk and upload it to the server in batches. While the app is in foreground, the data is synced periodically and usually the disk space used by the SDK is low. However, if the device is offline or the server is unreachable, the SDK will continue to store data on disk until it reaches the maximum disk usage limit.

Defaults to 50MB. Allowed values are between 20MB and 1500MB. Any value outside this range will be clamped to the nearest limit.

Note that the storage usage is not exact and works on estimates and typically the SDK will use much less disk space than the configured limit. When the SDK reaches the maximum disk usage limit, it will start deleting the oldest data to make space for new data.

enableFullCollectionMode

Overrides all sampling configurations and enables full data collection for all sessions. Use this option for debugging and testing purposes. Defaults to false. Use this option with caution as it can lead to high data collection and storage costs if done at scale in production.

Remote Configuration Options

A number of configuration options are available remotely from the Measure dashboard. Changes take effect without releasing a new app version. To change the remote configuration settings, navigate to the "Apps" tab in the Measure dashboard.

The SDK requests this configuration and caches it locally. For a new configuration to take effect, it takes two app launches. First, the SDK fetches the new configuration and caches it locally. On the next app launch, the new configuration takes effect.

Defaults

The following defaults are set for each app:

Crash Reporting#

Enable/Disable Screenshots#

Each Crash, by default comes with a screenshot of the app at the time of the crash. You can choose to disable this feature if you do not want screenshots to be captured.

Session timeline duration#

When a crash occurs, a session timeline up to a few minutes leading up to the crash is captured. You can configure this duration to control the number of events collected in each session timeline.

By default, 5 minutes of events before the crash are captured in the session timeline. You can adjust this duration to control the amount of data collected.

ANR Reporting#

Enable/Disable Screenshots#

Each ANR, by default comes with a screenshot of the app at the time of the ANR. You can choose to disable this feature if you do not want screenshots to be captured.

Session timeline duration#

When an ANR occurs, a session timeline up to a few minutes leading up to the ANR is captured. You can configure this duration to control the number of events collected in each session timeline.

By default, 5 minutes of events before the ANR are captured in the session timeline. You can adjust this duration to control the amount of data collected.

Bug Reports#

Session timeline duration#

When a bug report is submitted, a session timeline up to a few minutes leading up to the bug report is captured. You can configure this duration to control the number of events collected in each session timeline.

By default, 5 minutes of events before the bug report are captured in the session timeline. You can adjust this duration to control the amount of data collected.

Trace Sampling#

By default, 0.01% (1 in 10000) traces are reported. You can adjust this percentage from 0.001% to 100% to control the amount of data collected.

Launch Metrics Sampling#

Launch metrics include Cold Launch, Warm Launch, and Hot Launch metrics shown on the Overview page on the dashboard. A sampling rate can be configured to control the number of sessions for whom these launch metrics are collected.

By default, 0.01% (1 in 10000) of sessions will have launch metrics collected. You can adjust this percentage from 0.001% to 100% to control the amount of data collected.

Journey Sampling#

Journey events are used to construct the Journey view in the Measure dashboard. Journey events include Activity Lifecycle events, Fragment Lifecycle events, and Screen View events. A sampling rate can be configured to control the number of sessions for whom these Journey events are collected.

By default, 0.01% (1 in 10000) of sessions will have Journey events collected. You can adjust this percentage from 0.001% to 100% to control the amount of data collected.

HTTP Events#

HTTP events contain information about network requests made by your app. The following configuration options are available for HTTP events:

Enable/Disable HTTP events#

You can choose to enable or disable the collection of HTTP events by providing a URL. We support both exact URL matches and wildcard URL matches (using * as a wildcard character).

Examples:

• Disable a specific endpoint: https://example.com/api/v1/users
• Disable a domain and all its endpoints: https://example.com/*
• Disable a specific path across all domains: */api/v1/orders
• Disable a specific URL path: https://example.com/api/*/payments

Enable Request Body Collection#

By default, request body and headers are not collected for HTTP events. Note that enabling request body collection should only be done for very specific URLs which do not contain sensitive information and the payload size is not too large.

You can provide a list of URLs with wildcards for which request body and headers should be collected. We support both exact URL matches and wildcard URL matches (using * as a wildcard character).

Enable Response Body Collection#

By default, response body and headers are not collected for HTTP events. Note that enabling response body collection should only be done for very specific URLs which do not contain sensitive information and the payload size is not too large.

You can provide a list of URLs with wildcards for which response body and headers should be collected. We support both exact URL matches and wildcard URL matches (using * as a wildcard character).

Headers Blocklist#

Request and response headers are only collected if Request or Response Body Collection is enabled for a URL. By default, no headers are collected.

This configuration allows you to specify which headers should be not collected for requests and responses. You can provide a list of header names to be blocked. Header name matching is case-insensitive.

By default, the following headers are never collected, even if not specified in the blocklist:

• Authorization
• Cookie
• Set-Cookie
• Proxy-Authorization
• WWW-Authenticate
• X-Api-Key

Screenshot Mask Level#

Change the masking level of screenshots collected with Crashes and ANRs. It helps prevent sensitive information from leaking.

The following levels of masking can be applied to the screenshots:

Mask all text and media

Masks all text, buttons, input fields, image views and video.

For View based UI, video masking is performed on VideoView and Exoplayer's androidx.media3.ui.PlayerView and image masking is performed on ImageView. Image and video masking is currently not supported for Compose based UI.

Example:

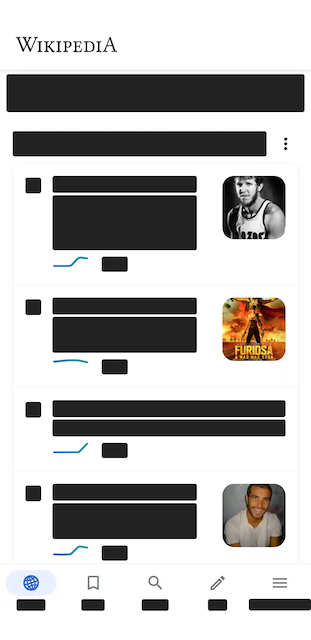

Mask all text

Masks all text, buttons & input fields.

Example:

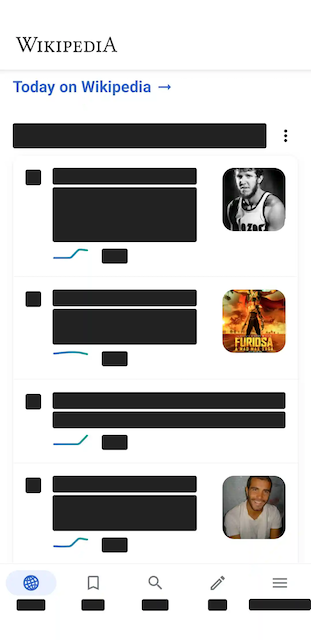

Mask text except clickable

Masks all text & input fields except clickable views like buttons.

Example:

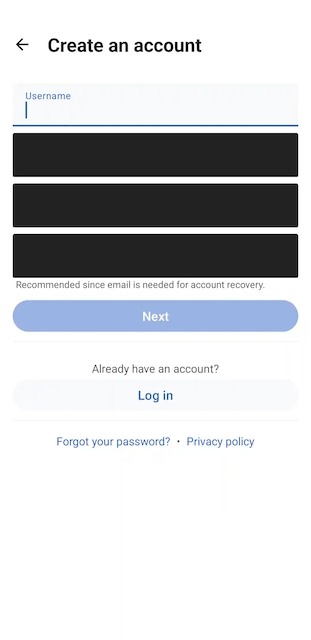

Mask sensitive input fields

Masks sensitive input fields like password, email & phone fields.

For View based UI, all input fields with inputType set to textPassword, textVisiblePassword, textWebPassword, numberPassword, textEmailAddress, textEmail and phone are masked in the screenshot.

For compose based UI, all input fields with KeyboardOptions set to KeyboardOptions(keyboardType = KeyboardType.Password) are masked in the screenshot by default.

Example:
